Single Turn Design

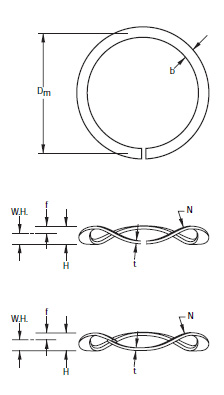

Single Turn Gap or Overlap Type

• Low-Medium Force
• Low-Medium Spring Rate
• Short Deflection
• Precise Load/Deflection Characteristics

Single turn wave springs are the basic and most common wave spring product. They are used in the widest variety of spring applications due to their lower cost and simplified design configuration.

Single turn wave springs provide the most flexibility to designers. There are few restrictions in their design. They are specified in the majority of small axial and radial space constraint applications.

Equations

Nomenclature

b = Radial Wall, in. [(O.D. - I.D.)÷2]
Dm = Mean Diameter (in) [(O.D. + I.D.)÷2]
E = Modulus of Elasticity (psi)
f = Deflection (in.)
H = Free Height (in.)
I.D. = Inside Diameter (in.)
K = Multiple Wave Factor
L = Length, overall linear (in.)
N = Number of Waves (per turn)
O.D. = Outside Diameter (in.)
P = Load (lb.)
S = Operating Stress (psi)
t = Thickness of Material (in.)
W.H. = Work Height (in.) [H-F]
Z = Number of turns
