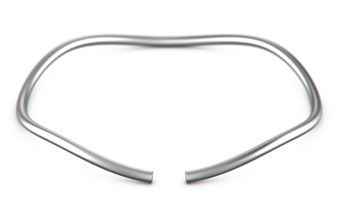

Wavo(R) Springs - Round Wire Wave Springs

Wavo Springs are produced from round-section wire to provide higher loads while maintaining the accurate loading found in wave springs. As an alternative to Belleville Springs, the Wavo provides similar loads but with an accurate, predictable spring rate.

View Wavo Part Tables

Advantages

• Accurate high force loading with greater deflection than Bellevilles
• Economical and stocked in carbon and stainless steel
• Fits in tight radial and axial spaces with inline force
• Custom designs available with No-Tooling-Charges

Applications

• Use in assemblies for variation as a result of tolerance stack-up
• Preload a mechanical assembly with greater force to reduce or eliminate vibration
• Compensate for the looseness that results in assembled components due to thermal expansion

Design

• Fits in 25% of the radial space required of a Belleville

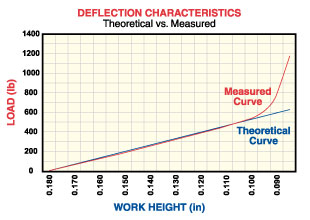

• The theoretical rate is accurate until the spring approaches its solid height, see graph below
