Crest-to-Crest(R) Wave Springs

Crest-to-Crest Wave Springs are pre-stacked in series, decreasing the spring rate proportionally to the number of turns. Uses are typically applications requiring low-medium spring rates and large deflections with low-medium forces.

Among the major advantages, this design eliminates the need to keep the wave crests aligned. The need to use a key locating device, or to insert a shim between individual springs is not necessary. Because the spring is integrally formed, the wave peaks hold their configuration.

As a replacement for helical compression springs, Crest-to-Crest Springs can develop similar forces, yet occupy one-half (1/2) or less the axial space. This allows for strict space constraints. Crest-to-Crest Wave Springs will maintain the same force and load specifications of a conventional round wire spring, but with the advantages of resultant lowered and compacted operating heights, free heights and solid heights.

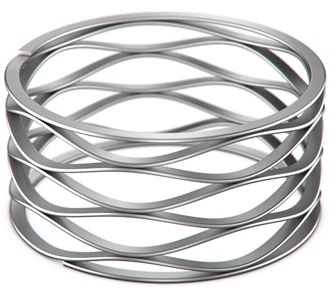

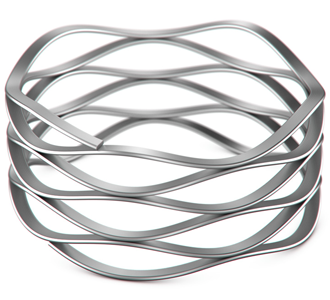

Crest-to-Crest Wave Spring Crest-to-Crest Wave Spring with Shim Ends
(C and CM Series) (CS and CMS Series)

Stock Sizes

China Wave Spring offers 4 different series from stock, with over 4,000 springs to select from:

• C Series
  • Inch series available from .188" to 2" in carbon and stainless steel
• CS Series
  • Inch shim end series available from .312" to 2" in carbon and stainless steel
• CM Series
  • Metric series available from 5 mm to 60 mm in carbon and stainless steel
• CMS Series
  • Metric shim end series available from 8 mm to 60 mm in carbon and stainless steel

Request Samples

Request free samples of any of our standard parts to test in your application.
