Tapered Section Retaining Rings (Circlips)

China Wave Spring has recently partnered with Beneri, the leading Italian circlip manufacturer since 1958, to bring you even more retaining ring solutions at the same quality you trust.

We now offer Tapered Section Retaining Rings (Circlips) from stock in addition to Spirolox and Constant Section Snap Rings.

*These products are only available for sale for United States-based customers

Tapered section retaining rings, also referred to as circlips, are retaining rings with a tapered radial wall. They are designed for high thrust loads and heavy-duty applications.

Tapered section retaining rings can be axially installed into a bore/shaft groove to safely secure assemblies in place. The tapered radial width decreases from the top to the free ends, ensuring nearly full contact with the groove when installed.

Advantages of Tapered Section Retaining Ring (Circlips)

• Can withstand significant thrust loading, ensuring that components remain securely in place even in harsh environments
• Tight tolerances to industry standards and specifications
• Circlip pliers can be used to simplify installation and removal
• Cost-effective
• Available in Spring Steel SAE 1060 and 1074

Tapered Section Retaining Ring Applications

Beneri circlips are trusted all over the world in various applications such as:

• Automotive and Agricultural Machinery (Engines, Transmission Components, Suspensions, Brakes)
• High-Temperature Machinery
• Naval Industry
• Furniture Industry
• And much more!

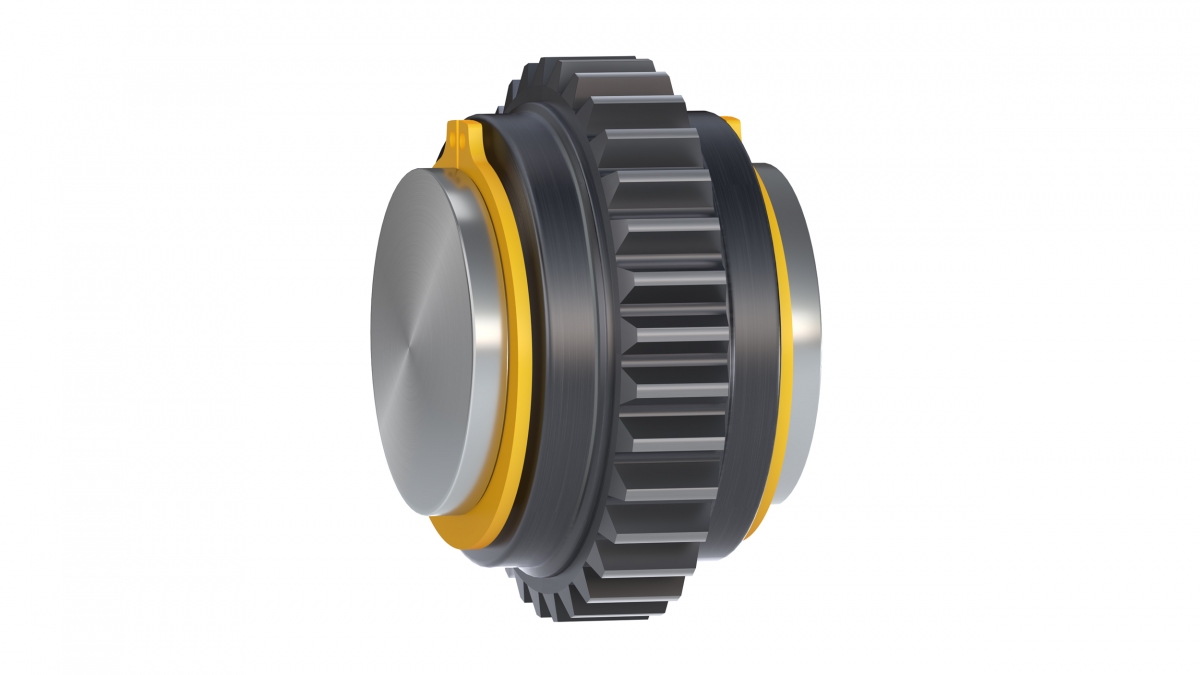

Internal tapered section ring secures actuator components	External tapered section ring secures a gear

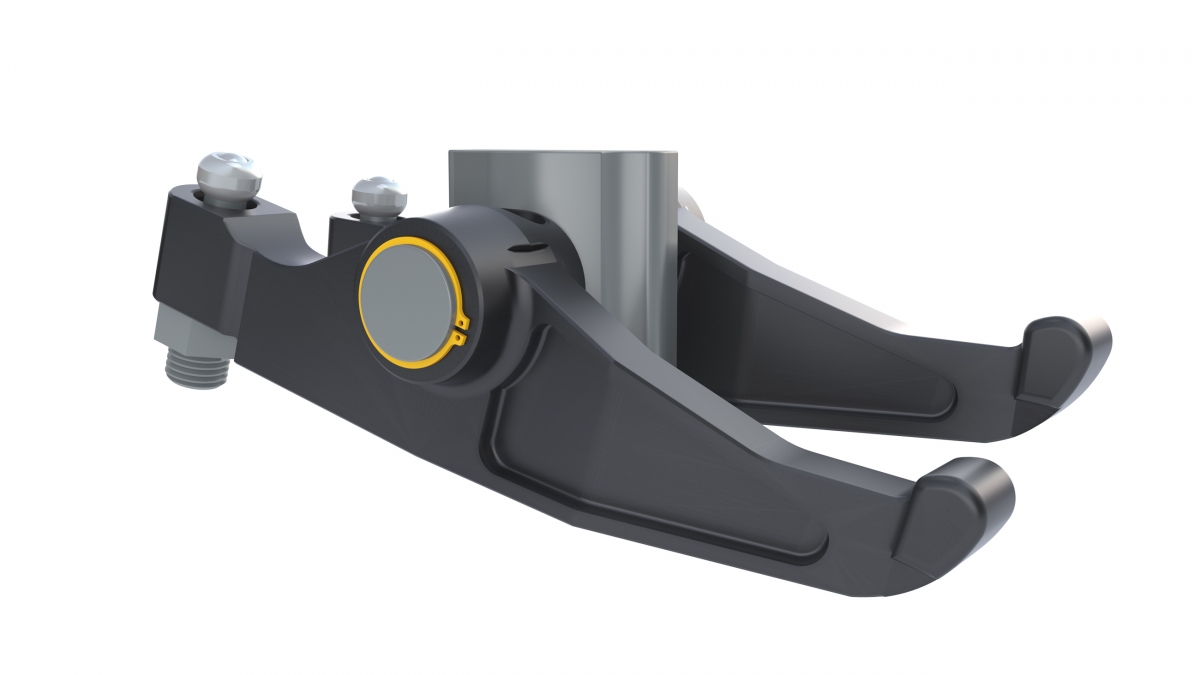

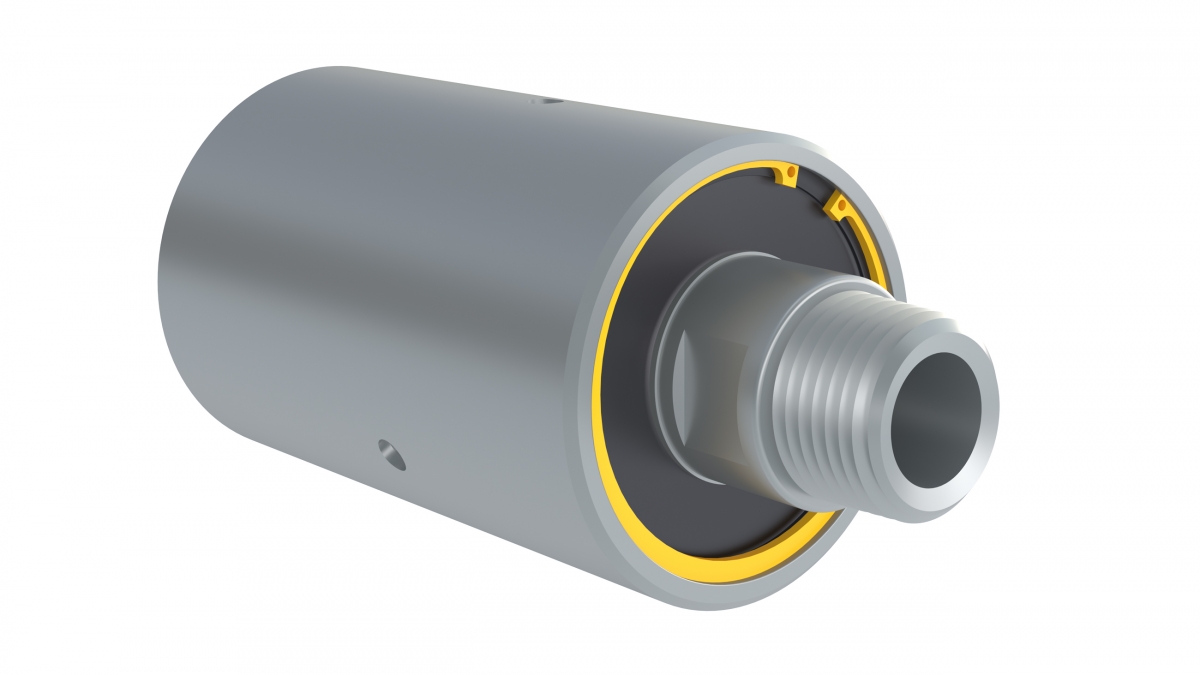

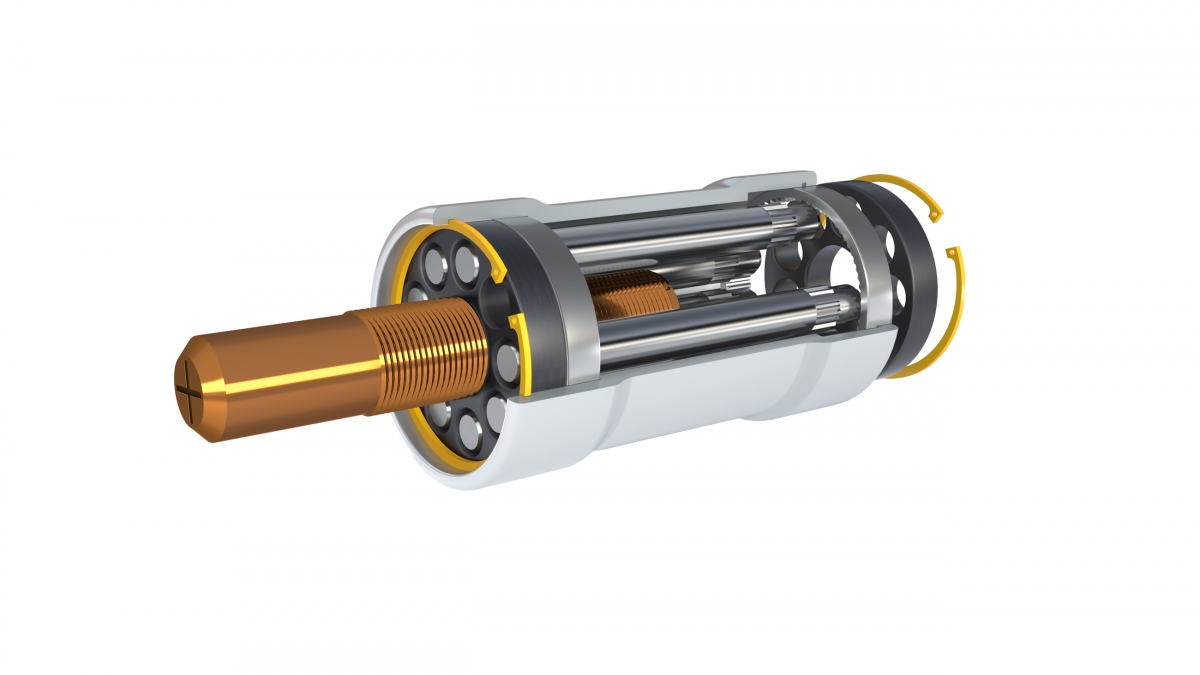

Internal tapered section ring secures a rotary union	External tapered section ring secures a rocker's arm

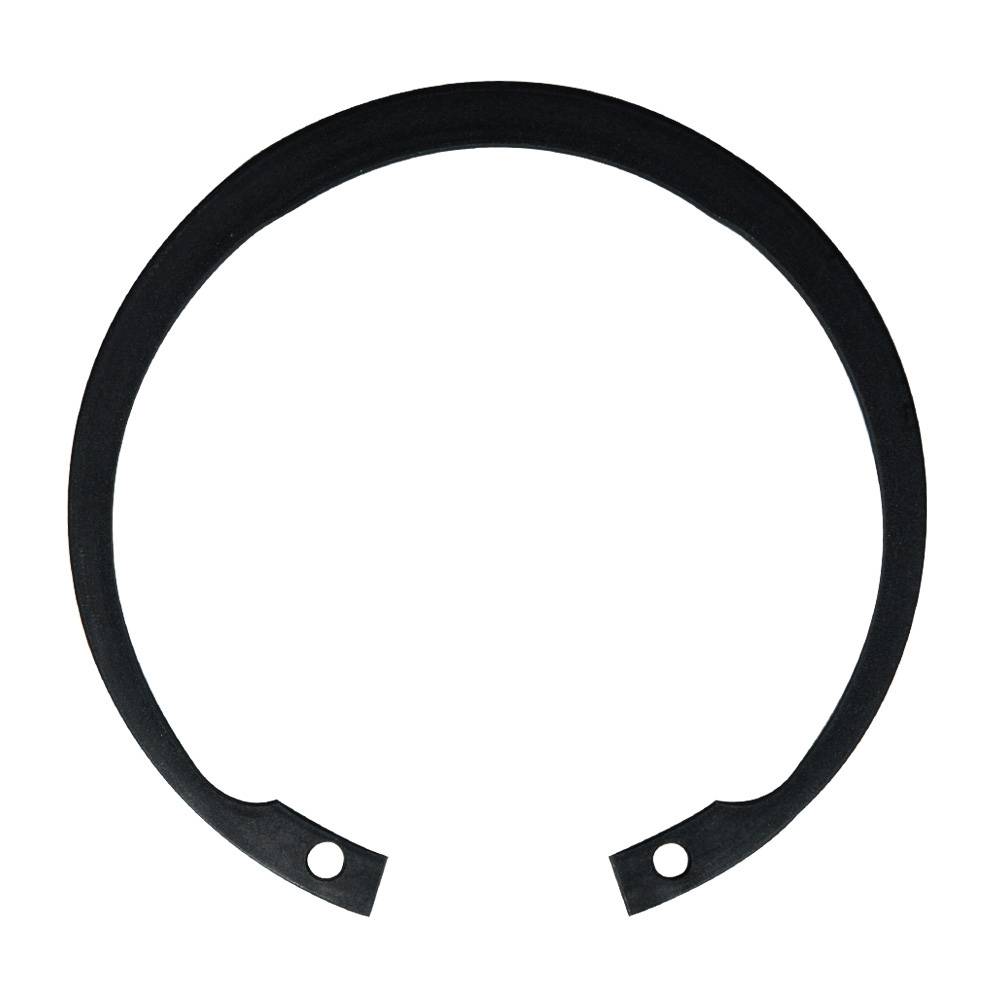

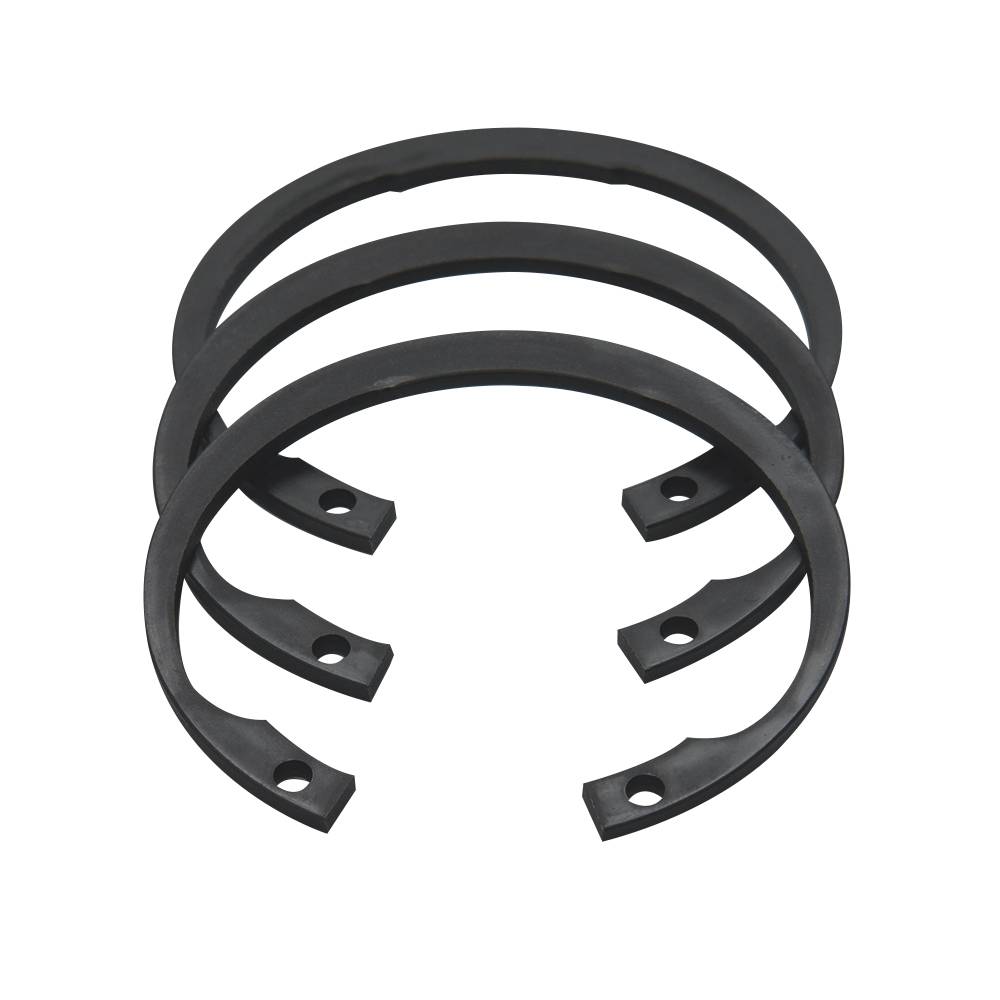

Internal Tapered Section Retaining Rings

RSHE (Imperial) and RSHD (Metric)
Axially assembled retaining rings for bores, designed to be installed into a housing groove.
The ring functions as a removable shoulder, safely securing the assembly.

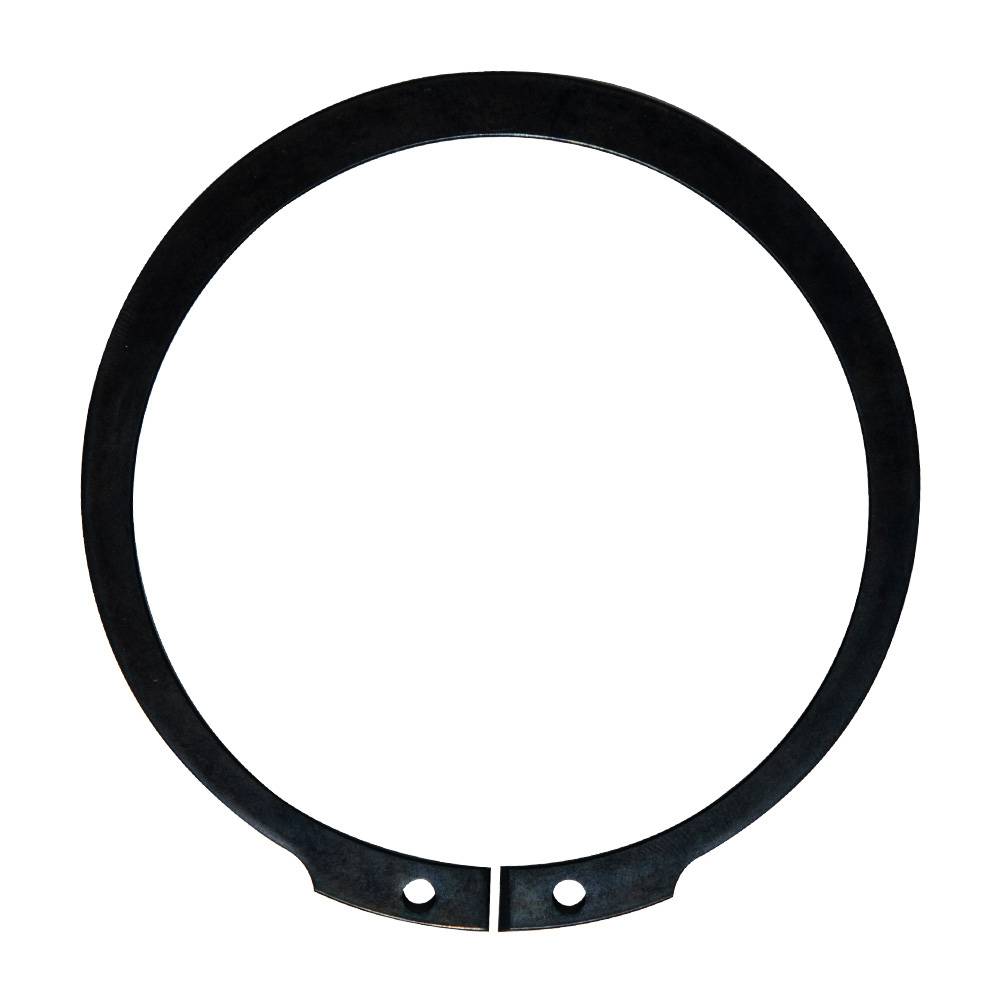

External Tapered Section Retaining Rings

RSSE (Imperial) and RSSD (Metric)
Axially assembled retaining rings for shafts, designed to be installed into a shaft groove.
The ring functions as a removable shoulder, safely securing the assembly.

Summary of Tapered Section Retaining Ring Types and Sizes

Quality

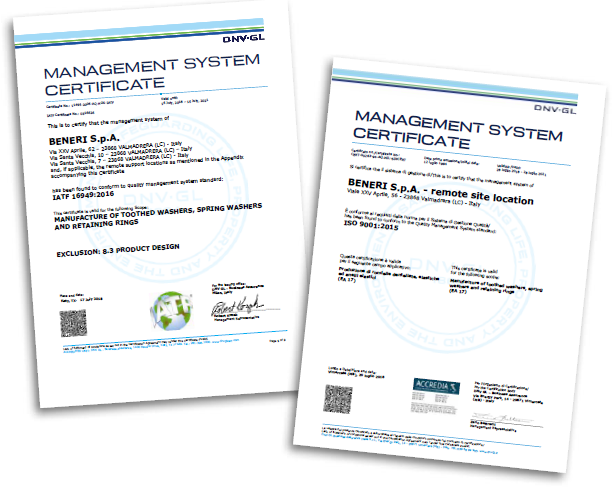

China Wave Spring chose Beneri because of their dedication to provide the highest quality in the market.

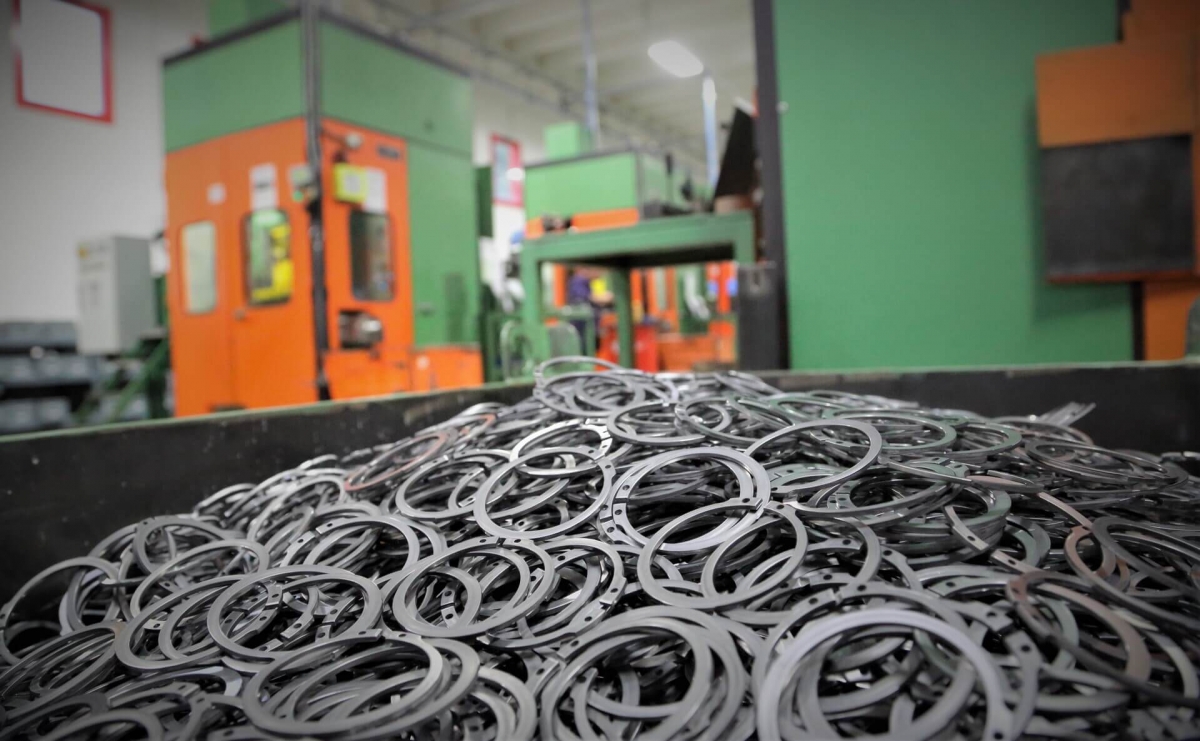

All Beneri parts are made in Italy in their 12,500 sqm facility, where all tooling is created in-house.

They achieve this high level of quality through:

RSHE

• RSHE-025 to RSHE-125 - Spring Steel SAE 1060
• RSHE-131 to RSHE-300 - Spring Steel SAE 1074

RSSE

• RSSE-025 to RSSE-106 - Spring Steel SAE 1060
• RSSE-112 to RSSE-300 - Spring Steel SAE 1074

RSHD

• RSHD-008 to RSHD-034 - Spring Steel SAE 1060
• RSHD-035 to RSHD-075 - Spring Steel SAE 1074

RSSD

• RSSD-003 to RSSD-027 - Spring Steel SAE 1060
• RSSD-028 to RSSD-075 - Spring Steel SAE 1074

Finishes

• Burnished (deburred) and oiled (BO)
• Oil & Phosphate per UNI/EN 12476 (OP)

---

Circlip End Configurations

By Diameter

RSHE-025 to RSHE-125 RSHD-008 to RSHD-033	RSHE-131 to RHSE-300 RSHD-034 to RSHD-075	All RSSE RSSD-006 to RSSD-048	RSSD-003 to RSSD-005	RSSD-050 to RSSD-075

---

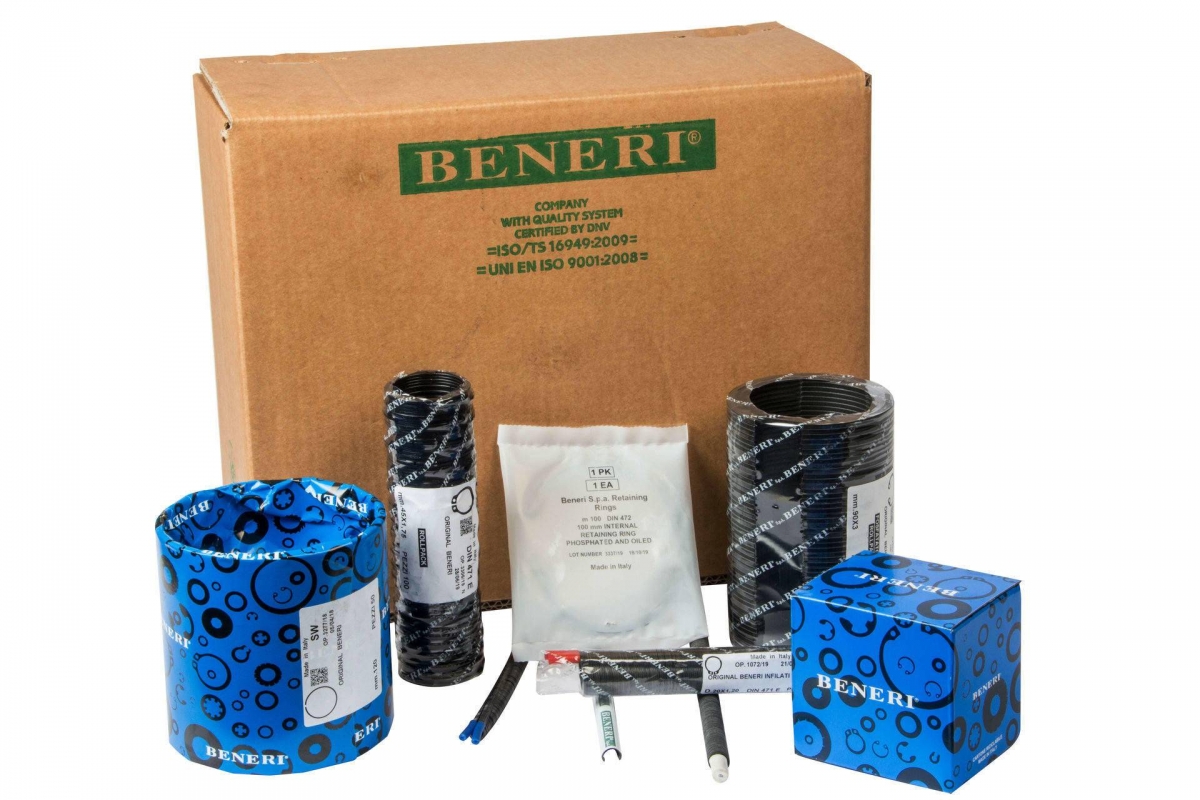

Packaging for Circlips

• From 0.25 to 1.37" (3 to 35 mm) - Bulk packaged in plastic bags (BX)
• From 1.43 to 2.43" (36 to 62 mm) - Thermoplastic wrapped – nonoriented (TW)
• From 2.50 to 5.75" (63 to 148 mm) - Rolled in paper wrappers (PR)

---

Tapered Section Ring Installation and Removal

Tapered section retaining rings (circlips) have lugs and lug holes that aid in installation and removal via retaining ring pliers. Ring expansion and contraction should be limited to avoid possible deformation caused by installation. See our Installation and Removal Guides below for more information.

• Internal Circlip Installation

• External Circlip Installation

FOR DIN-471

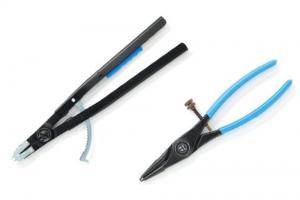

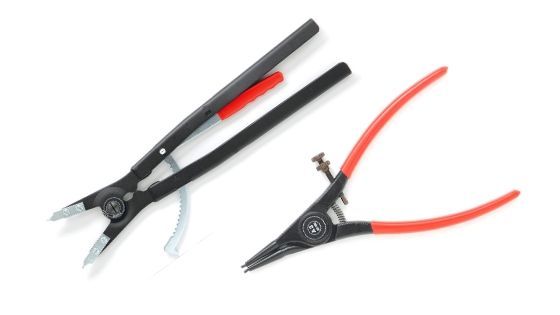

We recommend using pliers DIN 5254, which have stop and return screws to safely and gradually control ring expansion.

FOR DIN-472
We recommend using pliers DIN 5256, which have stop and return screws to safely and gradually control ring contraction.

---

Interchange Table

Use the Interchange Table below to identify the equivalent ring series.

Smalley	Beneri	DIN	Rotor Clip	WALDES TRUARC	IRR	Seeger	Anderton	MIL STANDARD
RSSD	DIN 471	471	DSH	-	-	A	D1400	-
RSHD	DIN 472	472	DHO	-	-	J	D1300	-
RSSE	2100-5100	-	SH	5100	3100	-	N1400	*16624
RSHE	2000-5000	-	HO	N5000	3000	-	N1300	*16625

*Dimensional equivalence only. Please contact China Wave Spring Engineering with any questions.

---
