Spirolox Retaining Ring Removal Made Easy

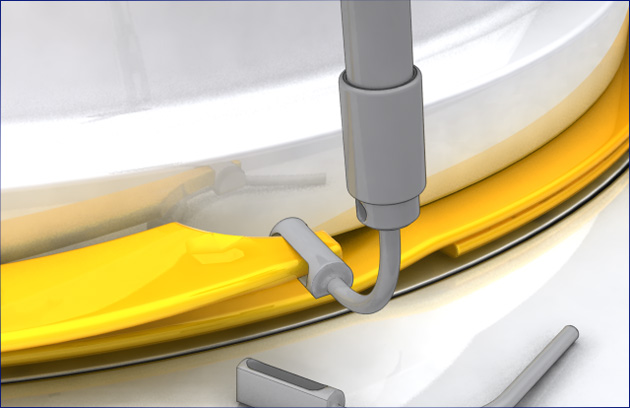

China Wave Spring Steel Ring Company introduces a tool specifically designed to remove multiple-turn rings. This new tool makes the removal process quick and easy. The Spirolox(R) Retaining Ring Removal Tool fits precisely between the ring layers to access the removal notch. Once the end is in position simply pull the ring’s free end out radially from the groove and up for removal.

The Spirolox(R) Retaining Ring Removal Tool effectively eliminates slipping since the tool surrounds and encapsulates the removal notch. The tool simplifies field disassembly and is available in four standard ends: small-straight, small-90° bend, large-straight, and large 90°. These ends are made to fit a wide variety of notch sizes.

Several options are available for purchase.

• Package A: Removal Tool Handle and all 4 removal tips
• Package B: Removal Tool Handle and any 2 tips
• Individual Parts: Choose which tips are best for your application

Spirolox Retaining Rings, also known as Spiral Retaining Rings, are available exclusively from Smalley. Spirolox Rings offer several advantages over ordinary stamped rings including:

• No Ears to Interfere with mating components in your assembly
• Economically produced in stainless steel because the coiling process produces no scrap
• Easy to assemble and remove
• 6,000 standard rings, both carbon and stainless steel
• No-Tooling-Costs on Specials

For more information about purchasing a removal tool download our Removal Made Easy brochure.
