Search for Wave Springs
To request a quote, sample, CAD model, or to customize a part for your application, click the desired part number from the table below.
The China Wave Spring part database is not material-specific. The part you have searched for may be available in carbon steel or stainless steel. Please specify the desired material when requesting a quote or samples:
- For Spirolox, Constant Section, and Hoopster rings, add "-S02" to designate 302 stainless steel (Example: VH-100-S02)
- For Spriolox, add "-S16" to designate 316 stainless steel. (Example: VH-100-S16)
- Tapered Section Rings are only available in carbon steel.
- For wave springs, add "-S17" to designate 17-7 stainless steel. (Example: C150-L2-S17).
*Please note for wave springs: the Free Height listed is a reference dimension, and Spring Rate listed is a theoretical dimension.
Currently viewing metric results

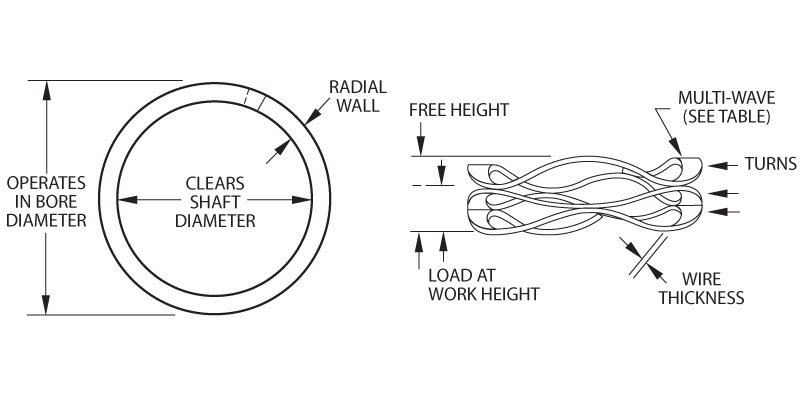

| Preview Image | Part Number | Operates in Bore Diameter (mm) / | Clears Shaft Diameter (mm) / | Load (N) / | Work Height (mm) / | Free Height REF. (mm) / | Waves / | Turns / | Wire Thickness (mm) / | Spring Rate REF. (N/mm) / |
|---|---|---|---|---|---|---|---|---|---|---|
|
NSSB-0063-L2
Metric Nested |
16.00
|
11.46
|
89.00
|
1.83
|
2.46
|
3.00
|
2
|
0.28
|
140.00
|
|
|
NSSB-0063-L3
Metric Nested |
16.00
|
11.46
|
133.50
|
2.08
|
3.15
|
3.00
|
3
|
0.28
|
125.00
|
|
|
NSSB-0075-L2
Metric Nested |
19.00
|
13.36
|
106.80
|
1.83
|
2.77
|
3.00
|
2
|
0.28
|
114.00
|
|
|
NSSB-0075-L3
Metric Nested |
19.00
|
13.36
|
160.20
|
2.08
|
3.18
|
3.00
|
3
|
0.28
|
146.00
|
|
|
NSSB-0087-L2
Metric Nested |
22.00
|
15.75
|
124.60
|
1.88
|
3.14
|
3.00
|
2
|
0.30
|
99.00
|
|
|
NSSB-0087-L3
Metric Nested |
22.00
|
15.75
|
186.90
|
2.18
|
3.56
|
3.00
|
3
|
0.30
|
136.00
|
|
|
NSSB-0095-L2
Metric Nested |
24.00
|
17.02
|
133.50
|
1.88
|
3.56
|
3.00
|
2
|
0.30
|
80.00
|
|
|
NSSB-0095-L3
Metric Nested |
24.00
|
17.02
|
200.30
|
2.18
|
3.86
|
3.00
|
3
|
0.30
|
119.00
|
|
|
NSSB-0102-L2
Metric Nested |
26.00
|
18.14
|
142.40
|
2.34
|
3.37
|
3.00
|
2
|
0.36
|
138.00
|
|
|
NSSB-0102-L3
Metric Nested |
26.00
|
18.14
|
213.60
|
2.69
|
3.73
|
3.00
|
3
|
0.36
|
205.00
|
|
|
NSSB-0110-L2
Metric Nested |
28.00
|
20.07
|
151.30
|
2.34
|
3.68
|
3.00
|
2
|
0.36
|
113.00
|
|
|
NSSB-0110-L3
Metric Nested |
28.00
|
20.07
|
227.00
|
2.69
|
4.04
|
3.00
|
3
|
0.36
|
168.00
|
|
|
NSSB-0118-L2
Metric Nested |
30.00
|
21.87
|
169.10
|
2.34
|
4.24
|
3.00
|
2
|
0.36
|
89.00
|
|
|
NSSB-0118-L3
Metric Nested |
30.00
|
21.87
|
253.70
|
2.69
|
4.78
|
3.00
|
3
|
0.36
|
121.00
|
|
|
NSSB-0126-L2
Metric Nested |
32.00
|
23.67
|
178.00
|
2.39
|
4.07
|
3.00
|
2
|
0.41
|
106.00
|
|
|
NSSB-0126-L3
Metric Nested |
32.00
|
23.67
|
267.00
|
2.79
|
4.48
|
3.00
|
3
|
0.41
|
158.00
|
|
|
NSSB-0138-L2
Metric Nested |
35.00
|
26.42
|
195.80
|
2.39
|
4.94
|
3.00
|
2
|
0.41
|
77.00
|
|
|
NSSB-0138-L3
Metric Nested |
35.00
|
26.42
|
293.70
|
2.79
|
5.35
|
3.00
|
3
|
0.41
|
115.00
|
|
|
NSSB-0146-L2
Metric Nested |
37.00
|
28.65
|
204.70
|
2.44
|
4.72
|
3.00
|
2
|
0.46
|
90.00
|
|
|
NSSB-0146-L3
Metric Nested |
37.00
|
28.65
|
307.10
|
2.90
|
5.18
|
3.00
|
3
|
0.46
|
135.00
|
|
|
NSSB-0158-L2
Metric Nested |
40.00
|
31.01
|
222.50
|
2.44
|
5.70
|
3.00
|
2
|
0.46
|
68.00
|
|
|
NSSB-0158-L3
Metric Nested |
40.00
|
31.01
|
333.80
|
2.90
|
6.15
|
3.00
|
3
|
0.46
|
103.00
|
|
|
NSSB-0165-L2
Metric Nested |
42.00
|
33.50
|
231.40
|
2.44
|
3.71
|
4.00
|
2
|
0.46
|
182.00
|
|
|
NSSB-0165-L3
Metric Nested |
42.00
|
33.50
|
347.10
|
2.90
|
4.17
|
4.00
|
3
|
0.46
|
273.00
|
|
|
NSSB-0185-L2
Metric Nested |
47.00
|
38.18
|
258.10
|
2.44
|
4.52
|
4.00
|
2
|
0.46
|
124.00
|
|
|
NSSB-0185-L3
Metric Nested |
47.00
|
38.18
|
387.20
|
2.90
|
4.98
|
4.00
|
3
|
0.46
|
186.00
|
|
|
NSSB-0205-L2
Metric Nested |
52.00
|
42.37
|
284.80
|
2.97
|
4.15
|
4.00
|
2
|
0.61
|
241.00
|
|
|
NSSB-0205-L3
Metric Nested |
52.00
|
42.37
|
427.20
|
3.58
|
4.76
|
4.00
|
3
|
0.61
|
362.00
|
|
|
NSSB-0217-L2
Metric Nested |
55.00
|
45.31
|
302.60
|
2.97
|
4.48
|
4.00
|
2
|
0.61
|
200.00
|
|
|
NSSB-0217-L3
Metric Nested |
55.00
|
45.31
|
453.90
|
3.58
|
5.09
|
4.00
|
3
|
0.61
|
301.00
|
|
|
NSSB-0244-L2
Metric Nested |
62.00
|
50.65
|
338.20
|
2.97
|
4.93
|
4.00
|
2
|
0.61
|
173.00
|
|
|
NSSB-0244-L3
Metric Nested |
62.00
|
50.65
|
507.30
|
3.58
|
5.54
|
4.00
|
3
|
0.61
|
259.00
|
|
|
NSSB-0268-L2
Metric Nested |
68.00
|
56.16
|
373.80
|
3.53
|
4.94
|
4.00
|
2
|
0.76
|
265.00
|
|
|
NSSB-0268-L3
Metric Nested |
68.00
|
56.16
|
560.70
|
4.29
|
5.70
|
4.00
|
3
|
0.76
|
398.00
|
|
|
NSSB-0276-L2
Metric Nested |
70.00
|
58.14
|
382.70
|
3.53
|
5.12
|
4.00
|
2
|
0.76
|
241.00
|
|
|
NSSB-0276-L3
Metric Nested |
70.00
|
58.14
|
574.10
|
4.29
|
5.88
|
4.00
|
3
|
0.76
|
361.00
|
|
|
NSSB-0284-L2
Metric Nested |
72.00
|
60.07
|
391.60
|
3.53
|
5.32
|
4.00
|
2
|
0.76
|
219.00
|
|
|
NSSB-0284-L3
Metric Nested |
72.00
|
60.07
|
587.40
|
4.29
|
6.08
|
4.00
|
3
|
0.76
|
328.00
|
|
|
NSSB-0295-L2
Metric Nested |
75.00
|
62.97
|
409.40
|
3.53
|
5.68
|
4.00
|
2
|
0.76
|
190.00
|
|
|
NSSB-0295-L3
Metric Nested |
75.00
|
62.97
|
614.10
|
4.29
|
6.44
|
4.00
|
3
|
0.76
|
286.00
|
|
|
NSSB-0315-L2
Metric Nested |
80.00
|
67.49
|
436.10
|
3.53
|
6.37
|
4.00
|
2
|
0.76
|
154.00
|
|
|
NSSB-0315-L3
Metric Nested |
80.00
|
67.49
|
654.20
|
4.29
|
7.13
|
4.00
|
3
|
0.76
|
230.00
|
|
|
NSSB-0335-L2
Metric Nested |
85.00
|
70.26
|
462.80
|
3.53
|
6.29
|
4.00
|
2
|
0.76
|
168.00
|
|
|
NSSB-0335-L3
Metric Nested |
85.00
|
70.26
|
694.20
|
4.29
|
7.05
|
4.00
|
3
|
0.76
|
252.00
|
|
|
NSSB-0354-L2
Metric Nested |
90.00
|
74.98
|
498.40
|
3.53
|
7.13
|
4.00
|
2
|
0.76
|
138.00
|
|
|
NSSB-0354-L3
Metric Nested |
90.00
|
74.98
|
747.60
|
4.29
|
7.89
|
4.00
|
3
|
0.76
|
208.00
|
|
|
NSSB-0374-L2
Metric Nested |
95.00
|
79.65
|
525.10
|
3.53
|
8.08
|
4.00
|
2
|
0.76
|
115.00
|
|
|
NSSB-0374-L3
Metric Nested |
95.00
|
79.65
|
787.70
|
4.29
|
8.84
|
4.00
|
3
|
0.76
|
173.00
|
|
|
NSSB-0394-L2
Metric Nested |
100.00
|
85.42
|
551.80
|
3.53
|
5.27
|
5.00
|
2
|
0.76
|
317.00
|
|
|
NSSB-0394-L3
Metric Nested |
100.00
|
85.42
|
827.70
|
4.29
|
6.03
|
5.00
|
3
|
0.76
|
476.00
|
